Exam Question

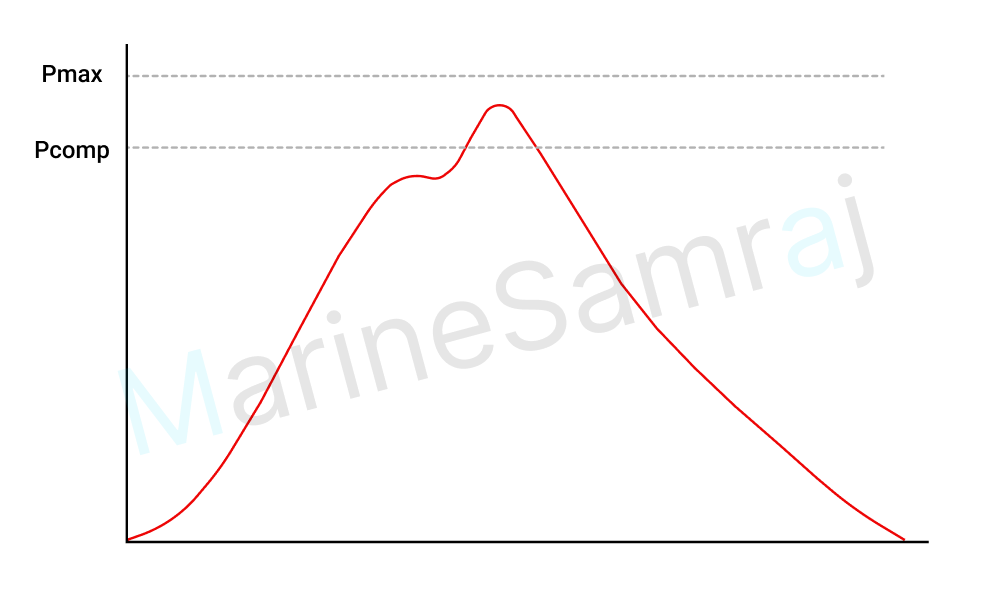

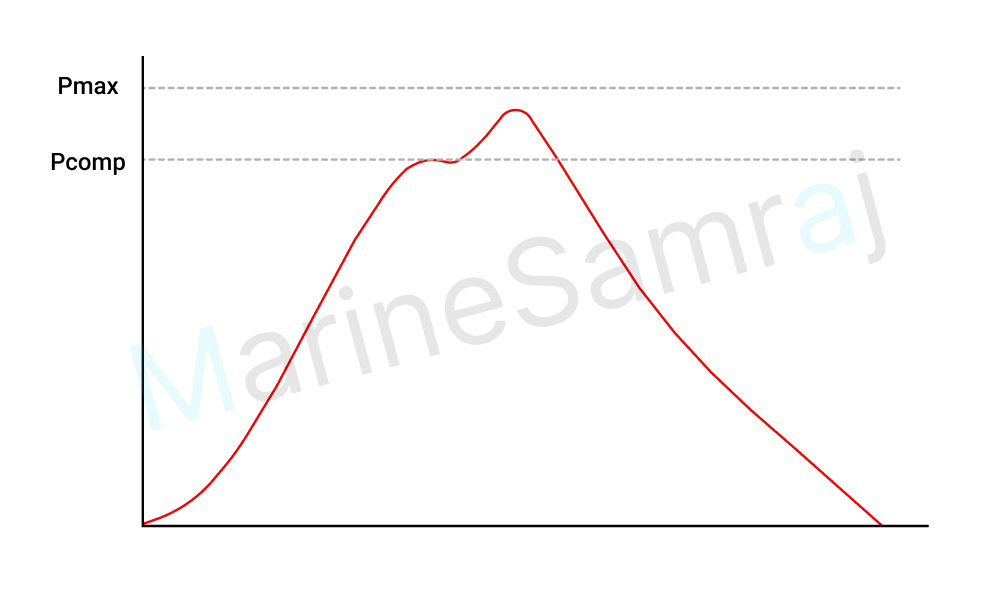

(a) A set of indicator diagram including draw cards has been taken for a main diesel engine. Examine critically, the following if the compression curve is normal:

(i) The maximum pressure is lower

(ii) The maximum pressure is higher

(iii) The expansion curve is lower

(iv) The expansion curve is higher.

(b) Describe how the faults as mentioned above can be rectified.
