Exam Question
(a) Describe how crankshaft alignment is checked. (6)
(b) Identify with reasons the causes of crankshaft misalignment. (4)
(c) State how the measurements are recorded and analysed. (6)
Class 2 (2nd Engineer)
MEP
📅 Jan 2024
Reference Answer
(a) Checking of alignment

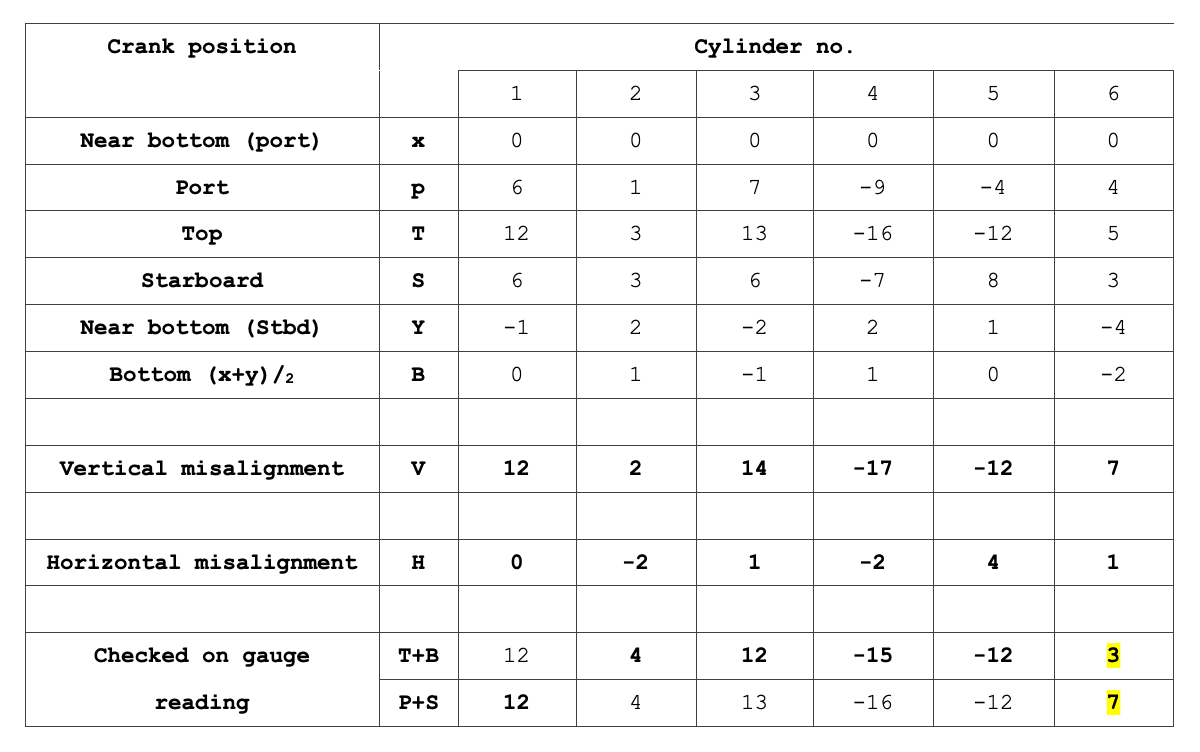

To check whether the alignment is acceptable, the crankshaft deflection readings are taken.
From that reading, the deflections in the vertical and horizontal planes are obtained by calculation.
The calculated figures are compared with the maximum allowable figures from the maker instruction book.
To check whether the alignment is acceptable, the crankshaft deflection readings are taken.
From that reading, the deflections in the vertical and horizontal planes are obtained by calculation.
The calculated figures are compared with the maximum allowable figures from the maker instruction book.
