Exam Question

(a) An alternator's three-phase winding consists of three sets of coils located in slots in the stator, surrounding the rotor's magnetic poles. Each phase winding is spaced 120° apart electrically, resulting in three alternating EMFs that are 120° out of phase with each other.

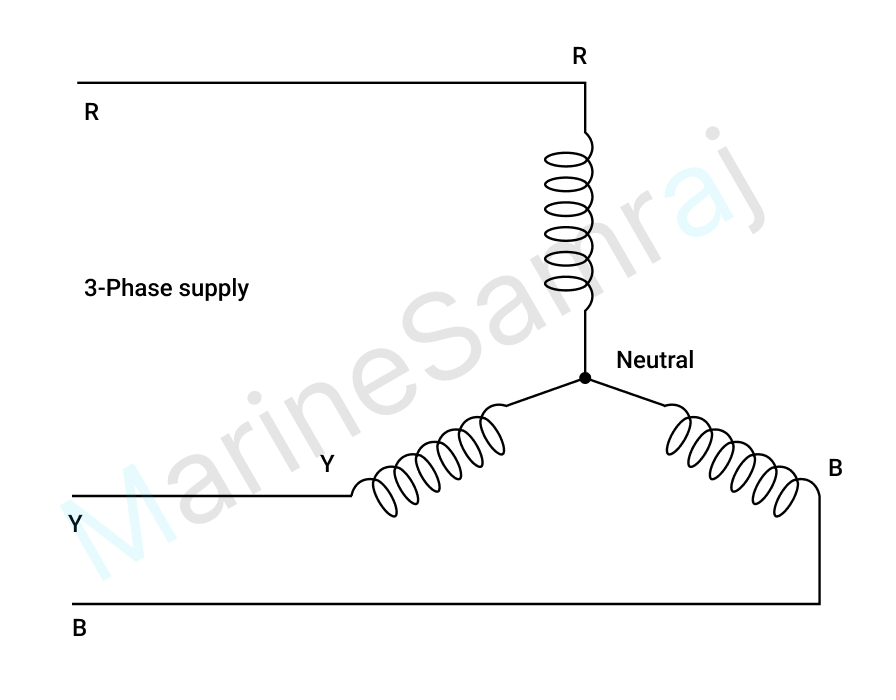

To form a star connection, one end of each phase winding is joined together to create a neutral point. The other ends of the windings are connected to outgoing conductors leading to the bus bar. This neutral point can either be insulated or connected to a neutral line, depending on the system design.
(b) Why neutral point is insulation on most ships:
On ships, the neutral point is usually insulated to prevent the system from tripping in the event of a single earth fault. This is critical for maintaining power continuity to essential equipment like the steering gear, navigation systems, and emergency lighting.
