Exam Question

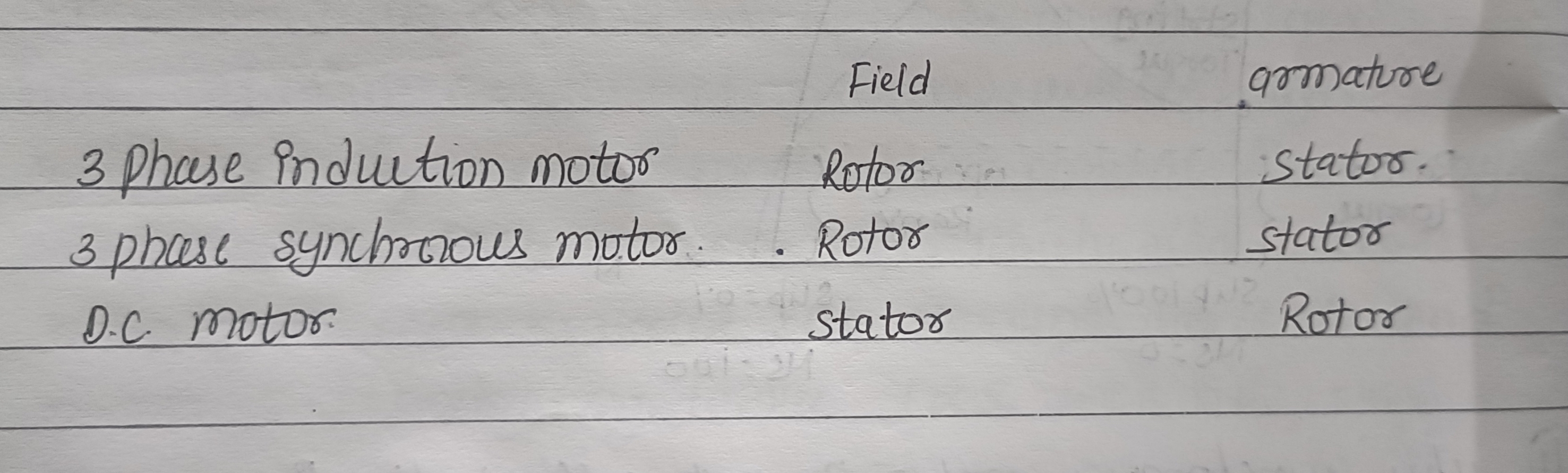

(a) Electric motors contain a stationary member as well as a rotating member. For each of the following machines, identify in which part of the motor three field winding and the armature winding are located: three phase induction motor, three phase synchronous motor, d.c. motor. (6)

(b) A 220 V, d.c. shunt motor has an armature resistance of 0.5 ohm and an armature current of 40 A on full load Determine the reduction in flux necessary for a 50 per cent reduction in speed. The torque for both conditions can be assumed to remain constant. (10)
