Exam Question
With reference to electronic control systems:
(a) Draw a simple block diagram for temperature control. (8)
(b) Describe each component shown in the diagram in (a). (8)
Class 2 (2nd Engineer)
MET
📅 Oct 2024
Reference Answer

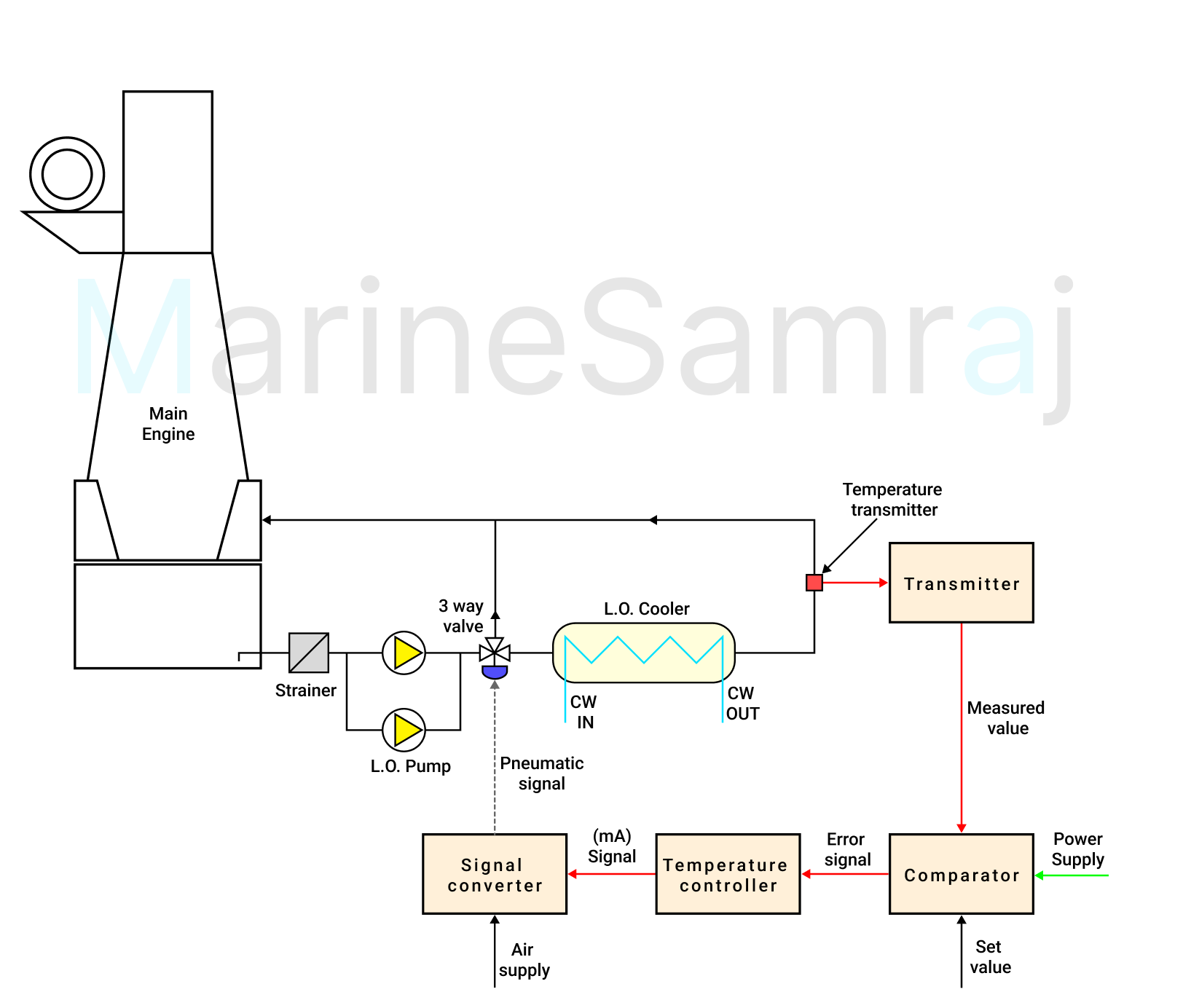

(a) Simple block diagram for Main Engine L.O. temperature control system:
(b) Description of components:
Temperature Sensor:
Measures the temperature of the system. Several types exist, including Resistance Temperature Detectors (RTDs), Thermistors, and filled-tube thermometers. The sensor provides a signal representing the measured value (MV) of the temperature.
(b) Description of components:
Temperature Sensor:
Measures the temperature of the system. Several types exist, including Resistance Temperature Detectors (RTDs), Thermistors, and filled-tube thermometers. The sensor provides a signal representing the measured value (MV) of the temperature.
