Exam Question

(a) Injector nozzles operate within the intense heat of combustion gases in the combustion chamber. Without effective cooling, several issues can arise. The material of the nozzle may overheat, leading to erosion and wear. Overheating of the fuel in the nozzle can result in the formation of carbon deposits, affecting the injection pattern and causing poor combustion. Therefore, proper cooling is essential to maintain the integrity of the injector and ensure optimal combustion efficiency

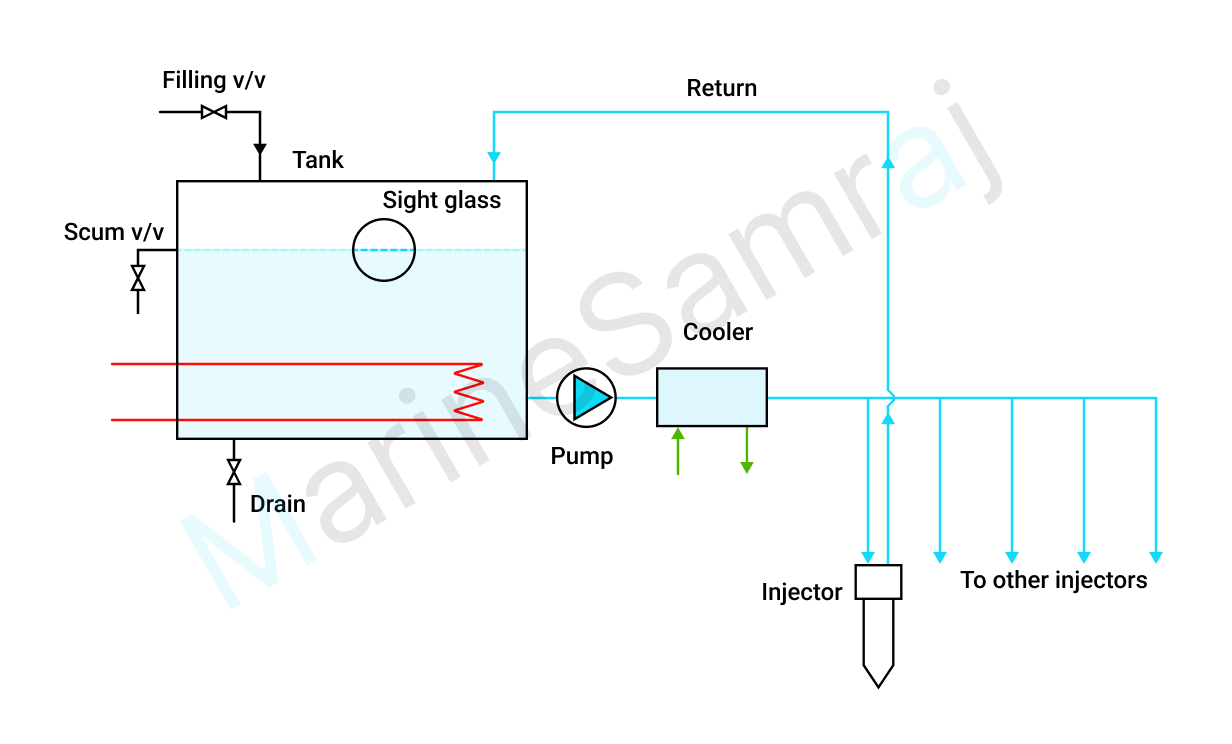

(b) In the operation of a nozzle cooling system for a generator engine, water is circulated from a tank through a pump and cooler. This circulating water is directed through a cooling space in the nozzle tips, effectively dissipating the intense heat generated during combustion. Subsequently, the cooled water returns to the tank via individual return pipes, completing the cooling cycle. The tank itself is equipped with a heating coil to maintain the water temperature at 70°C when the engine is not in operation, preventing any undesired cooling. Essential features such as filling valves, drain valves, and a scum valve are integrated into the tank to facilitate system maintenance and eliminate the risk of oil contamination. An observation window is also provided for visual checks to ensure the tank remains clear of fuel oil contamination. This comprehensive cooling system is crucial for preserving the integrity of the injector nozzles and optimizing combustion efficiency in the generator engine.

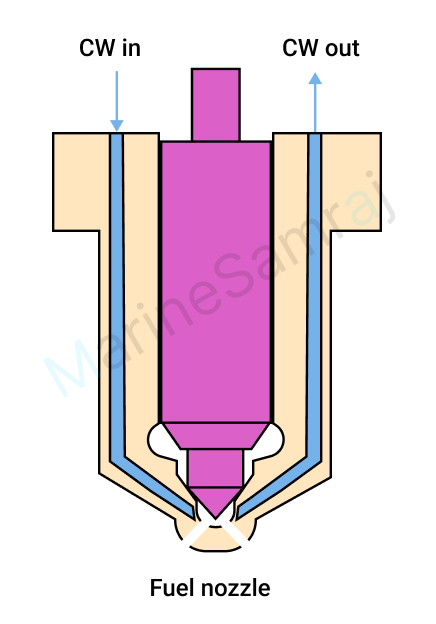

(c) For engines without dedicated nozzle cooling systems, two common methods are employed:
Heat Transfer to Cooled Cylinder Head:
