Exam Question

With reference to rudder carrier bearings fitted to Merchant ships:

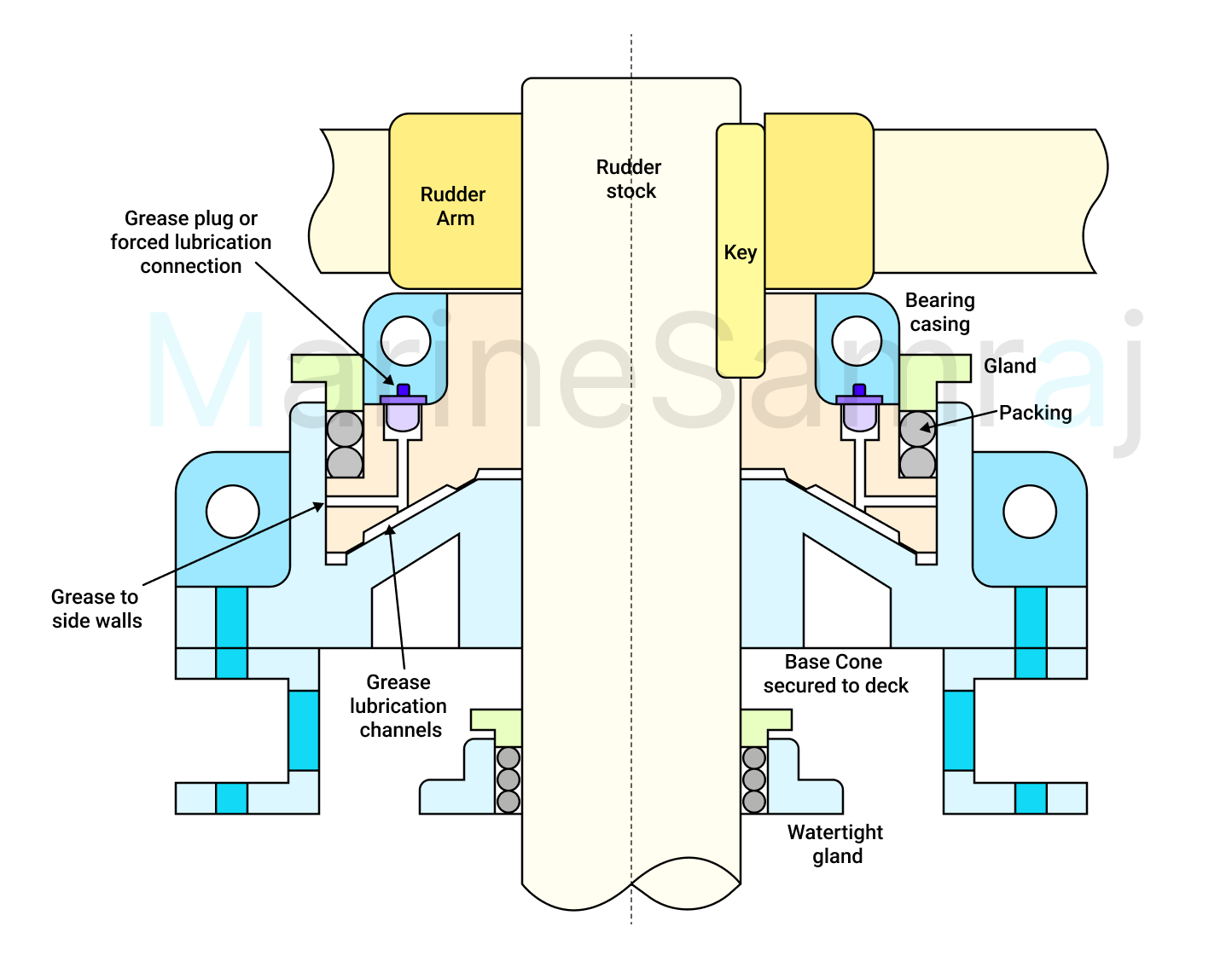

(a) Sketch a bearing designed to transfer the full weight of the rudder to the ships structure. (6)

(b) Describe the consequences if the rudder carrier bearing surfaces become heavily scored. (6)

(c) Describe the consequences of and the action to be taken, if the carrier shatters. (4)
