Exam Question

(a) With the aid of delta and star connection diagrams, state the basic equation from which the delta-star and star-delta conversion equation can be derived. (6)

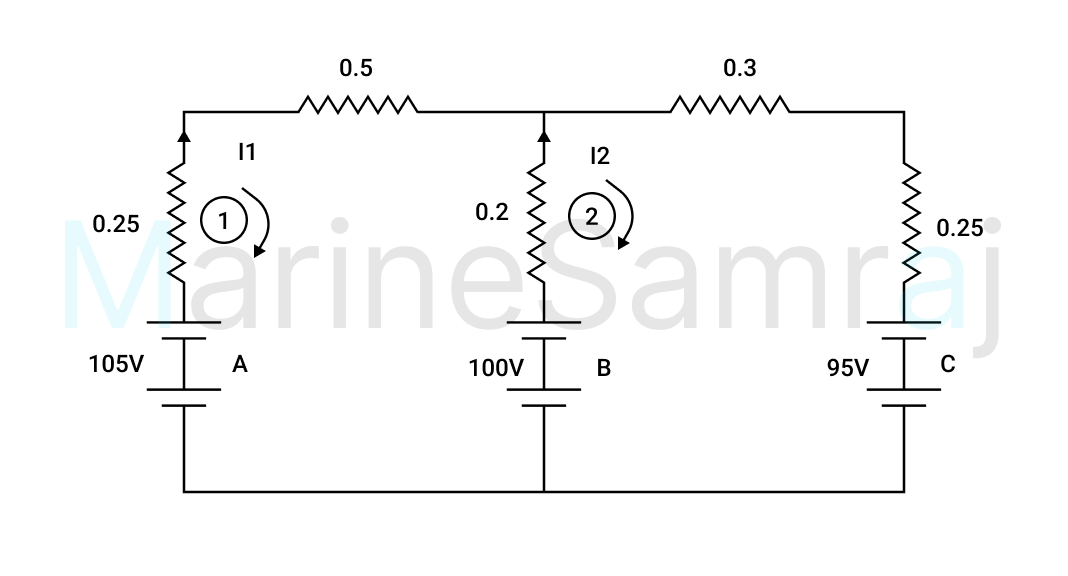

(b) Three batteries A, B, and C have their negative terminals connected together. Between the positive terminals of A and B there is a resistor of 0.5 ohm and between B and C there is a resistor of 0.3 ohm.

Specifications of the three batteries are given below:

Battery A 105 V, Internal resistance 0.25 ohm

Battery B 100 V, Internal resistance 0.2 ohm

Battery C 95 V, Internal resistance 0.25 ohm

Determine the current values in the two resistors and the power dissipated by them.
